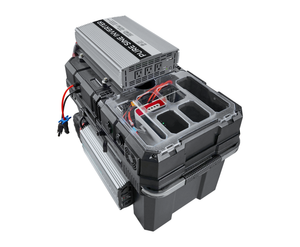

RevoPower Hybrid 1100W (600W On Grid + 500W Off Grid) MPPT Solar Generator w USB-C DIY Solar Generators
Sale

RevoPower Hybrid 1100W (600W On Grid + 500W Off Grid) MPPT Solar Generator w USB-C

$655.00 $579.00
$655.00
(You save $76.00 )
Current Stock:
Adding to cart… The item has been added
Description

Don’t waste your solar panels with an off-grid system!

RevoPower's simple solution for today's solar power generation.

 How does it work?

  1. Connect your battery and solar panels (not included). Then plug the battery box into your 110/120V wall outlet.  Your work is done here.  Everything else is autonomous!
  2. The hybrid battery box’s first priority is charging your battery. It will only charge until the battery reaches maximum voltage (Typ 13.0V, adjustable).
  3. Once the battery is full, all extra power will be sent back to the grid.
  4. The battery charge voltage will be maintained and ready to go.
  5. If/When you lose the grid connection, the on-grid inverter will be turned off, and the off-grid inverter can be used.

Features:

  • Don’t waste your solar panels with an off-grid system:
    • Have power storage for emergencies, camping, tailgating, etc AND have the ability to send power back to the grid when you’re at home.
  • Plug and Play, no splicing, crimping, or soldering required.
  • Continuous monitoring via Bluetooth app.
  • Perfect for on-grid or off-grid use at home, industrial use, commercial use, tailgating, camping, emergency power outages, etc.
  • Premium components like 200°C silicone insulated wire, efficient MPPT charge controller, and rugged enclosure.
  • Built-in short-circuit protection, open-circuit protection, reverse polarity protection, and over-load protection.
  • Assembled in USA with technical support in USA.



Terms used in this listing:

Grid: When we refer to the grid, we are referring to the transmission system for electricity in America.  Specifically, residential/commercial 120VAC/1PH/60HZ connections.  This product includes a pure sine 48-62HZ grid tie inverter.  It may work in other countries such as Canada, Mexico, South America, and Europe, but it has not been tested in these regions.

RevoPower does not make any claims or guarantees regarding power sent back to the grid or a reduced electric bill.  Sending power back to the grid is different with every electric provider.  In most cases, the relatively small amount of power “sent back” to the grid will in fact be consumed within the same residence, thus, never actually be sent to the grid.  Meaning, your electric bill should go down.  If you intend to sell power back to your electric provider, you must contact them as there are many rules and regulations and we cannot be responsible for knowing all the regulations in every jurisdiction.

Specifications

Battery chemistry compatibility:

Deep Cycle Lead Acid

Flooded Lead Acid

Sealed Lead Acid (SLA)

Absorbed Glass Mat (AGM)

Gel

Lithium

Lithium Iron Phosphate (LiFePO4)

3S or 7S lithium

Solar charge controller technology:

Off-grid inverter: MPPT

Grid-tied inverter: MPPT

Solar panel requirement:

Open circuit voltage range

(VOC rating on your solar panel label):

12V version: 15-28V DC

24V version: 22-60V DC

Maximum solar panel input power:

(Let us know if you need more solar input capacity)

40A / 550W @ 12V

40A / 1100W @ 24V

Solar charge controller power consumption at idle:

1.0W

Grid-tied inverter power output:

600W max continuous

Pure sine wave

Off-grid inverter power output:

500W max continuous / 1000W max surge

Modified sine wave

Input ports:

(1) Solar panel connector pair

(1) 12V/24V Pair input/output 5/16” post terminals for connecting external batteries or devices

Output ports:

(2) Household 110/120VAC/1PH/60HZ 3-prong outlet

(1) 12V socket, 30A (360W max output)

(1) 12V/24V Pair input/output 3/8” post terminals for connecting external batteries or devices

Output port technology:

(1) USB-C PD & (1) USB-A QC 3.0:

18W Max. Output Power (5V@3.4A, 9V@2A, 12V@1.5A)

·       Supports DCP (BC1.2, Apple, Samsung)

·       Supports Qualcomm Quick Charge Protocol QC2.0 and QC3.0

·       Supports Samsung Fast Charge Protocol AFC

(1) USB-A 5V 2.0A

Grid power requirement:

90-140VAC (Typ 110-125 VAC), automatically detected

Typical 48-62Hz, automatically detected

Temperature range:

-4°F~131°F (-20°C~55°C)

Enclosure inside dimensions:

14”L x 7-1/8”W x 9-5/8”H

Outside dimensions:

17.6" L x 10.0" W x 10.7" H

Weight:

18 lbs

Warranty:

Complete solar generator: 1 year

Solar charge controller: 3 years

Lithium Battery (If equipped): 3 years
