Plug and Play: Works with any solar panel. Easy to set up and use, perfect for remote locations.
Versatile Applications: Ideal for holiday lighting, pond pumps, landscape lighting, and security cameras.
24/7 Outdoor Reliability: Built to withstand the elements with smart temperature controls and a built-in battery heater.
Waterproof Design: Waterproof housing, IP68 waterproof solar charge controller and waterproof cord entry/exits.
Battery Options: Optional LiFePO4 battery or can be used with any 12V battery type.
Pre-Installed Components: Includes a 20A solar charge controller and a 150W inverter, all housed in a secure enclosure.
Programmable Output: Choose from dusk-to-dawn, 24/7 continuous, or dusk-to-dawn with a time limit. This programmable output can provide up to 20A to power any 12V device and/or the 120V inverter (if equipped).
It’s designed specifically for things like Halloween/Christmas/holiday lighting, pond pumps and aerators, landscape lighting, security cameras and other applications where reliable off-grid power is needed, but aesthetics are important.

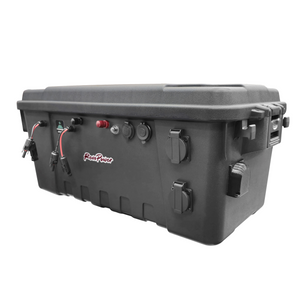

Reliability means Fortress mini is designed to live outside 24/7 and has smart temperature controls to cool the internal components to prevent overheating, as well as a built-in battery heater to prevent freezing. The enclosure is waterproof and includes waterproof cord entry/exits on all sides.
The Fortress Mini solar generator can be ordered with an optional lithium battery or you can use your own 12V battery. If you use your own battery, you can use virtually any 12V battery type: Lead acid, SLA, gel, AGM, lithium ion or LiFePO4 (Lithium Ion Phosphate). Included inside the Fortress mini is a 20A (240W) solar charge controller, and 150W inverter for 120V power output, already installed in the enclosure.
Featuring our 100% waterproof 20A solar charge controller, the Fortress Mini can be easily programmed for a dusk-to-dawn output (the power output starts when the sun goes down, turns off when the sun comes up). It can also be programmed for 24/7 continuous output, or dusk-to-dawn + a time limit.
Specifications:
|
Solar charge controller: |
20A (240W) PWM IP68 waterproof charge controller |
| Battery pack (If equipped): | Lithium Iron Phosphate (LiFePO4) 12.8V |
|
Load output settings: |
· Dusk to dawn continuous · 24/7 continuous on · Dusk + XX hours on |
|
120V AC Inverter certifications: |
ETL listed, conforms to UL 458 std. |
|
Input ports: |
(1) Solar panel connector pair |
|
Output ports: |
(1) Household 110/120VAC / 1PH / 60 HZ 3-prong outlet, modified sine · Maximum continuous power output: 150W · Maximum surge power output: 250W (2) USB 5VDC 2.4A (1) 12V Pair input/output port |
|
Temperature range: |
-31°F~131°F (-35°C~55°C) |
|
Outside dimensions: |
13-1/2”L x 9-1/4”W x 5”H |
| Inside dimensions: (Battery space) | 5-1/2"L x 7"W x 4"H |
|
Warranty: |
5 years |
