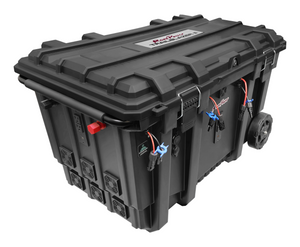

RevoPower EcoTrekker Solar Generator: 930W Solar Input, up to 10kW output and 6kWh battery capacity
The EcoTrekker Solar Generator is the most cost-effective solar generator on the market!
It’s perfect for backup power and preparing for emergencies and natural disasters, but it’s also great for RVs, off roading, construction work, camping, or going to the beach!
The EcoTrekker Solar Generator’s inverter is mounted on the housing’s exterior which means there’s tons of battery space inside! It’s very similar to the Scout Solar Generator, except it has a larger housing, and it’s missing a few of the Scout’s premium features. This makes it a great all-in-one portable system and hands-down the least expensive way to go solar with lots of batteries.
Being able to supply your own battery, or use our battery makes this solar generator one of the best and least expensive options on the market. Our solar generators are completely modular with connections to add more batteries in the future.
Solar generators are an excellent investment for hurricane / natural disaster preparation, backup power for your home, camping, tailgating, medical devices, refrigerators, air conditioners, construction equipment and tools, CPAP machines and more. Future maintenance is easy with simple hand tools and off-the-shelf parts, unlike some solar generators that are worthless if one component fails. Designed in America and professionally wired in Houston, TX so you can rest assured you’ll have the best performing solar generator available.
Featuring our new high performance solar charge controller, these solar generators can be used with virtually any 12V battery on earth. Installing your own batteries is super easy: Just connect the supplied 5/16” ring terminal wires to your battery’s posts.
Features
Hardware Features:
- Large, sturdy wheels for use on smooth surfaces or off-road. Extendable metal handle for ease when rolling. Perfect for camping and outdoor use (weather permitting).
- Pre-wired Solar charge controller with plug and play solar connectors for easy setup.
- Pre-wired and ready to go: 5/16" ring battery terminals fit most batteries.
- Totally modular:
- Easily add multiple solar panels to speed up charging.
- Car charger and faster wall chargers available for purchase.
- Critical connections made with the best marine grade 200°C rated silicone insulated wire we can find, and crimped or soldered in Houston, TX
- Need wind turbine inputs? Check out our Trailblazer and Rebel Solar Generators.
Software features:
- Automatic battery recognition for 12 Flooded, AGM and GEL batteries. Lithium batteries can be manually set.
- Modern and Efficient 3-stage PWM charging: equalize, boost and float (for Flooded, AGM and GEL). 2-Stage user friendly settings for lithium batteries.
- Simple menus with a Large Back-lit LCD display. The display shows system status, solar input current, solar input voltage, battery voltage, and battery state of charge (%). The menu rotates through these parameters automatically, so a wireless camera can be used to remotely monitor them.
- All of the industry standard protections like reverse solar polarity protection, reverse battery polarity protection, battery over-discharge, battery over-voltage, and a 30A circuit breaker on the 12V sockets.
Specifications
Battery chemistry compatibility: |
Lithium Iron Phosphate (LiFePO4) Deep Cycle Lead Acid Flooded Lead Acid Sealed Lead Acid (SLA) Absorbed Glass Mat (AGM) Gel Lithium 3S (12V) (A 12V automotive starting battery will function, but run times will not be ideal) |
Maximum solar panel input open circuit voltage (VOC rating on your solar panel label): |
55V DC (Works with almost any solar panel.) |
Maximum solar panel input power: |
930W (450W RP300 Charge Controller + 2x 240W RP220 Charge Controller)
|
Inverter output: |
Inverter watts refers to the maximum continuous output. Max surge output is 2 x the continuous rating. |
Input ports: |
(3) Solar panel connector pair (1) 12V/24V Pair input/output 5/16” post terminals for connecting external batteries, optional wall charger, or devices |
|
2000W Pure Sine (4,000W Surge): (2) Household 110/120VAC/1PH/60HZ 3-prong outlet (1) 12V socket, 30A (360W max output) (1) 12V/24V Pair input/output 5/16” post terminals for connecting external batteries or devices USB-C/USB-A: See “Output Technology” section below |
Output ports: External dimensions: Weight: |
3000W Pure Sine (6,000W Surge): (2) Household 110/120VAC/1PH/60HZ 3-prong outlet (1) 110/120VAC/1PH/60HZ Terminal Block (Hot/Neutral/Ground) (1) 12V socket, 30A (360W max output) (1) 12V/24V Pair input/output 5/16” post terminals for connecting external batteries or devices USB-C/USB-A: See “Output Technology” section below |
4000W Pure Sine (8,000W Surge): (2) Household 110/120VAC/1PH/60HZ 3-prong outlet (1) 110/120VAC/1PH/60HZ Terminal Block (Hot/Neutral/Ground) (1) 12V socket, 30A (360W max output) (1) 12V/24V Pair input/output 5/16” post terminals for connecting external batteries or devices USB-C/USB-A: See “Output Technology” section below |
|
5000W Pure Sine (10,000W Surge): (2) Household 110/120VAC/1PH/60HZ 3-prong outlet (1) 110/120VAC/1PH/60HZ Terminal Block (Hot/Neutral/Ground) (1) 12V socket, 30A (360W max output) (1) 12V/24V Pair input/output 5/16” post terminals for connecting external batteries or devices USB-C/USB-A: See “Output Technology” section below |
|
|
10000W Pure Sine (20,000W Surge): (4) Household 110/120VAC/1PH/60HZ 3-prong outlet (1) 110/120VAC/1PH/60HZ Terminal Block (Hot/Neutral/Ground) (1) 12V socket, 30A (360W max output) (1) 12V/24V Pair input/output 5/16” post terminals for connecting external batteries or devices USB-C/USB-A: See “Output Technology” section below |
All models Output port technology:
|
(1) USB-C PD & (1) USB-A QC 3.0: 18W Max. Output Power (5V@3.4A, 9V@2A, 12V@1.5A)
Supports Samsung Fast Charge Protocol AFC |
Temperature range: |
-4°F~131°F (-20°C~55°C) |
Inside dimensions: |
30" L x 20" W x 12-1/2" H |
Outside dimensions: |
34-1/4" L x 22-5/8" W x 16-1/2" H |
Weight: |
30 lbs / With 6000Wh batteries: 145 lbs |
Warranty: |
5 years |
