Add a bidirectional USB-C power port to your solar generator. This upgrade gives your battery system a panel-mounted USB-C connection that can be used as an input or output; it can send power out to USB-C devices or accept USB-C input to help recharge the battery.
Built around a smart bidirectional buck-boost charger/discharger module, this add-on is designed for 12V LiFePO4 battery systems and pairs it with a USB-C bulkhead connector and waterproof cover for a professional exterior installation. It is ideal for powering modern USB-C electronics directly from your solar generator, while also allowing compatible USB-C chargers or power sources to feed energy back into the battery system.
This option is limited to 60W, making it well suited for phones, tablets, cameras, lights, USB-C tools, small electronics, and many laptops that support USB-C PD charging.
Key Features
- Bidirectional USB-C Power
Use the USB-C port as an output for charging devices, or as an input for feeding power back into a compatible 12V LiFePO4 battery system.
- Designed for 12V LiFePO4 Batteries
- USB-C PD Fast Charging Support
Supports USB-C Power Delivery for efficient modern charging up to 60W / 20V 3A.

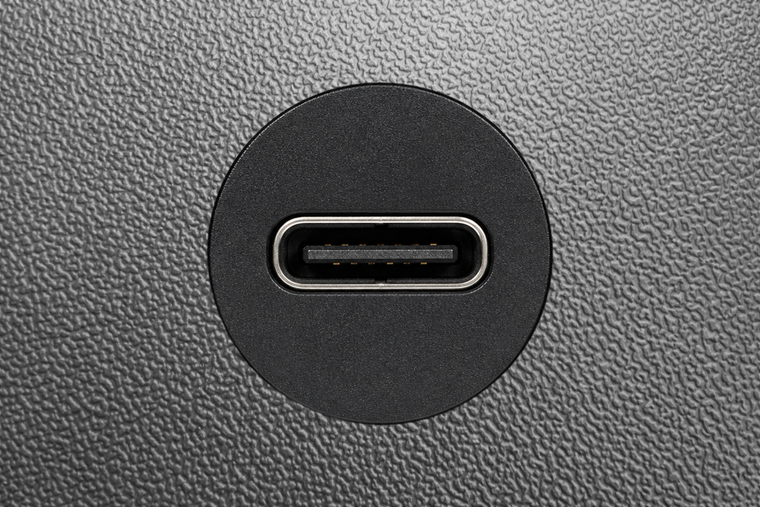

- Waterproof Panel-Mount Connector
The external USB-C socket includes a protective dust/water cover.
What This Upgrade Is For
This add-on is perfect when you want your solar generator to directly support modern USB-C equipment, including:
Phones
Tablets
USB-C laptops
Action cameras
Camera batteries
LED work lights
USB-C powered tools and accessories
Radios and small electronics
Power banks
Field electronics and test gear
Specifications
| Power Direction |
Bidirectional: USB-C output and USB-C input |
| Battery Compatibility |
12V LiFePO4 (4S) |
| Power Input/Output (Through External USB-C Port) |
60W max |
| Internal Module Power Input/Output |
100W max |
| Supported USB Protocols |
USB-C PD, PD3.1, QC4.0+, QC3.0, QC2.0, FCP, AFC, SCP |
| Module Battery Voltage Range |
11.0V - 14.6V DC |
| Protection Features |
Over-temperature cutoff, short-circuit protection, surge protection |
Important Notes
The internal module is capable of higher power in some configurations, but the exterior USB-C connector is rated for 60W max.
Actual charging speed depends on the connected device, USB-C cable, charger, battery voltage, and power negotiation.
This is an installed add-on for compatible RevoPower solar generator builds, not a standalone charger.
