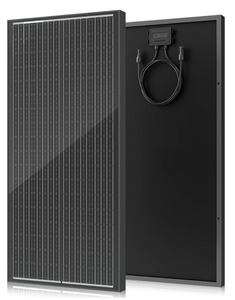

100 Watt 12 Volt Polycrystalline Solar Panel High Efficiency Module PV Power for Battery Charging Boat, Car, Van, RV 100W
$114.00
(No reviews yet)
Write a Review
100 Watt 12 Volt Polycrystalline Solar Panel High Efficiency Module PV Power for Battery Charging Boat, Car, Van, RV 100W
- Works perfectly with all of our solar panel devices, solar generators, solar panel mounts, and magnetic solar panel mounts.
- Heavy duty style glass and aluminum panel - Perfect for permanent installations but at only 15 lbs, still easy to move around.
- Pre-drilled holes on the back of the panel allow for fast mounting and securing. Compatible with all of our mounting systems such as our Magnetic Solar Panel Mounts, EZArray and modular Steel Solar Panel Ground Mounts.
- High module conversion efficiency. Ideal output: 500Wh per day (depending on the availability of sunlight). Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments.
- Advanced encapsulation material with multilayered sheet laminations to enhance cell performance and provide a long service life. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades.
- Proven and tested: Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance, Withstand high winds (2400 Pa) and snow loads (5400 Pa). IP65 rated junction box provides complete protection against dust and low pressure water jets.
|
Cell Type |
Polycrystalline |
|
Maximum Power |
100W |
|
Optimum Operating Voltage |
17.0V |
|
Optimum Operating Current |
5.88A |
|
Open Circuit Voltage |
20.4V |
|
Short Circuit Current |
6.3A |
|
Maximum System Voltage |
600 VDC |
|
Maximum Series Fuse Rating |
15A |
|
Dimensions |
35-11/16" x 26-9/16" x 1-1/4" |
|
Weight |
15.5 lbs |
Wire Length |
3 FT
|
| Warranty |
5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty |
